AZ-HR7K ARC UHF RFID Tag, 47x 31mm, Impinj M730 chip, 13 meter read distance, ARC Spec F, I, L, O, Q, R, W2, W5, W6, Y, Y2
Download Specification

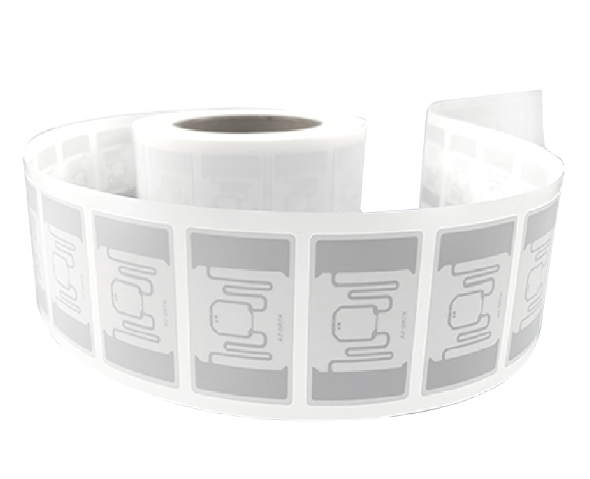

AZ-GR7K is an ARC certified UHF RFID tag. Worked at frequency of 860~ 960 Mhz with Impinj M730 chip embedded, It can be read at distance up to 13 meter. Typical application: clothing retail, supply chain management and brand protection
S/N |
Model Number |
Antenna Size (mm) |
IC | ARC Specs | ||||||||||||||||
F | H | I | L | O | Q | R | T | U | S | Z | W2 | W5 | W6 | Y | Y2 | C2 | ||||
1 | GR7K | 44*28 | M730 | ¡ñ | ¡ñ | ¡ñ | ¡ñ | ¡ñ | ¡ñ | ¡¡ | ¡¡ | ¡¡ | ¡¡ | ¡ñ | ¡ñ | ¡ñ | ¡ñ | ¡ñ |
ARC Spec | Application | Segment |
C2 | Retail-Non-Apparel | Retail(FCC) |
F | Apparel/Home | Retail |
H | High Density Apparel | Retail |
I | Apparel ETSI | Retail(FCC) |
L | Intimate Apparel | Retail |
O | Sporting Goods, Craft, Stationary | Retail |
P | Batteries | Automotive |
Q | Accessories | Retail |
R | Apparel And Footware | Retail(FCC) |
S | Pharma | Healthcare |
T | Tire | Automotive |
U | Baggage | Aviation |
Y2 | Electronics, Toys | Retail |
Z | QSR(Food) | Restaurant |
W2 | Socks | Retail |
W5 | Sunglasses, Accessories | Retail |
W6 | Jewelry | Retail |
Main features:
¡ñ 47 mm x 31 mm
¡ñ Impinj M730 chip with read distance up to 13 meter
¡ñ ARC cerfified, comply with ARC Spec F, I, L, O, Q, R, W2, W5, W6, Y, Y2
¡ñ ISO18000-6c & EPC C1G2 protocol
¡ñ Comply with Walmart ARC requirements
Physical | ¡¡ |
Material | Coated Paper |
Size | 47 mm (L) x 31 mm (W) x 0.25mm( T) |
Antenna | Etched aluminum,44*28 mm model: GR7K |
ARC Spec | F, I, L, O, Q, R, W2, W5, W6, Y, Y2 |
Packing | 4,000 pcs/ roll |
Protocol | ISO18000-6C & EPCglobal Class I Gen 2 |
RF features | ¡¡ |
Frequency | 860~ 960 Mhz |
Chip | Impinj M730 |
EPC memory | 128 bit |
User memory | 0 bit |
TID memory | 48 bit |
Access & Kill passwrod | Shared 32 bit |
Read distance | up to 15 meter |
Rewrite Endurance | 10,000 cycles |
Environment | ¡¡ |
Operating Environment | -20 ~ 60 Degree Celsius, 5~ 95% RH, no condensation |
Storage Environment | -10 ~ 40 Degree Celsius, 5~ 95% RH, no condensation |
ESD | +/ -2000V peak |
Bending diameter | > 50 mm, tension less than 10 N |
Shelf life | 2 years |
RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.
WIRELESS SCANNING
One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.
UNIQUE TRACKING
RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.
REAL-TIME UPDATES
Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.
INTEGRATION WITH OTHER SYSTEMS
The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
