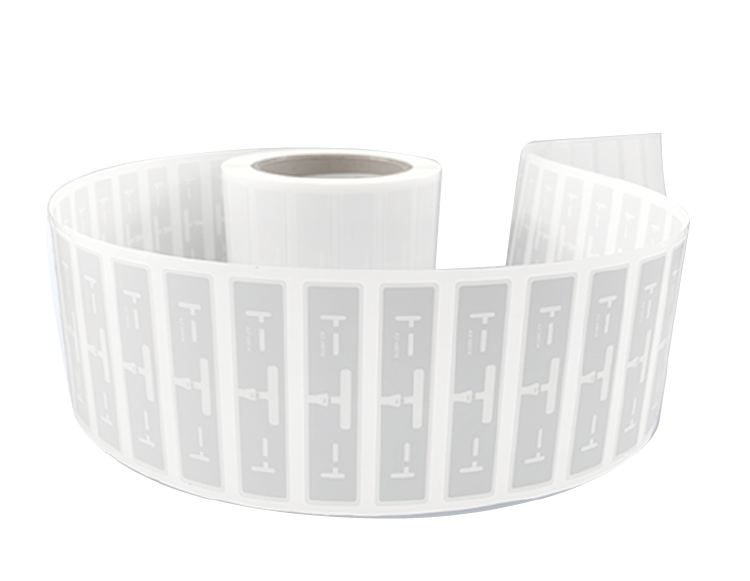

AZ-HR7K ARC Certified 73x17 mm UHF RFID tag

AZ-HR7K ARC Certified 73x17 mm UHF RFID tag

AZ-HR7K ARC UHF RFID Tag, 73x 17mm, Impinj M730 chip, 15 meter read distance, ARC Spec F, H, I, L, O, Q, R, W2, W5, W6, Y, Y2

Download Specification

OverviewSpecificationApplicationsSupport

AZ-HR7K is an ARC certified UHF RFID tag. Worked at frequency of 860~ 960 Mhz with Impinj M730 chip embedded, It can be read at distance up to 15 meter. Typical application: clothing retail, supply chain management and brand protection



S/N

Model
Number
Antenna Size
(mm)
IC ARC Specs
F H I L O Q R T U S Z W2 W5 W6 Y Y2 C2
1 HR7K 70*14.5 M730 ¡ñ ¡ñ ¡ñ ¡ñ ¡ñ ¡ñ ¡ñ ¡¡ ¡¡ ¡¡ ¡¡ ¡ñ ¡ñ ¡ñ ¡ñ ¡ñ



ARC Spec Application Segment
C2 Retail-Non-Apparel Retail(FCC)
F Apparel/Home Retail
H High Density Apparel Retail
I Apparel ETSI Retail(FCC)
L Intimate Apparel Retail
O Sporting Goods, Craft, Stationary Retail
P Batteries Automotive
Q Accessories Retail
R Apparel And Footware Retail(FCC)
S Pharma Healthcare
T Tire Automotive
U Baggage Aviation
Y2 Electronics, Toys Retail
Z QSR(Food) Restaurant
W2 Socks  Retail
W5 Sunglasses, Accessories Retail
W6 Jewelry Retail




Main features:

¡ñ   73 mm x 17 mm

¡ñ   Impinj M730 chip with read distance up to 15 meter

¡ñ   ARC cerfified, comply with ARC Spec F, H, I, L, O, Q, R, W2, W5, W6, Y, Y2

¡ñ   ISO18000-6c & EPC C1G2 protocol

¡ñ   Comply with Walmart ARC requirements




Model:AZ-HR7K
Physical ¡¡
Material Coated Paper
Size 73 mm (L) x 17 mm (W) x 0.25mm( T)
Antenna Etched aluminum,70*14 mm model: HR7K
ARC Spec F, H, I, L, O, Q, R, W2, W5, W6, Y, Y2
Packing 6,000 pcs/ roll
Protocol  ISO18000-6C & EPCglobal Class I Gen 2
RF features ¡¡
Frequency 860~ 960 Mhz
Chip Impinj M730
EPC memory  128 bit
User memory 0 bit
TID memory 48 bit
Access & Kill passwrod Shared 32 bit
Read distance up to 15 meter
Rewrite Endurance 10,000 cycles
Environment  ¡¡
Operating Environment  -20 ~ 60 Degree Celsius, 5~ 95% RH, no condensation
Storage Environment  -10 ~ 40 Degree Celsius, 5~ 95% RH, no condensation
ESD  +/ -2000V peak
Bending diameter  > 50 mm, tension less than 10 N
Shelf life  2 years

RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
