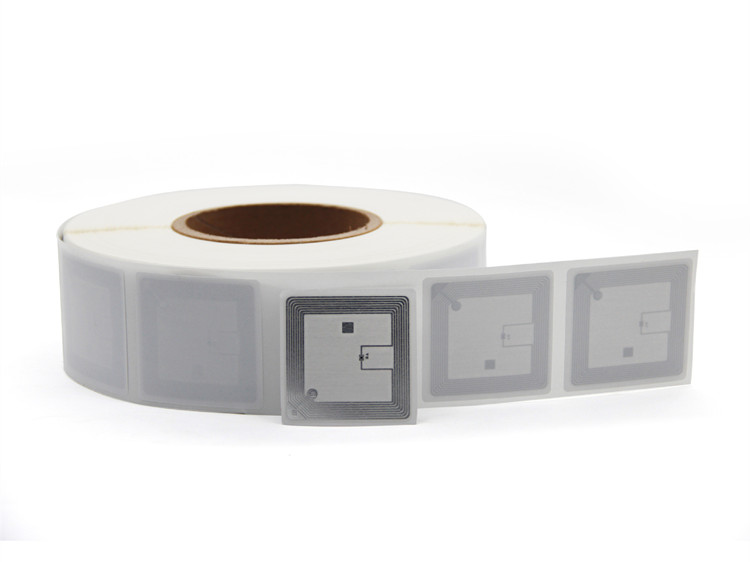

GEE-LT-100 RFID Book Tag

GEE-LT-100 RFID Book Tag

RFID book tag, 13.56 Mhz, 50 x 50 mm, NXP mifare icode slix, 1 kbit memory, AFI, EAS,  ISO15693 protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-LT-100 is a type of high performance RFID tags specialized for library book management. Worked 13.56 Mhz, with NXP ICODE SLix chips embedded, this type of RFID Tags can be read at distance of  30 cm, meanwhile build-in anti-collision technology and EAS/ AFI anti-theft technology strengthen its usage in RFID libraries.


Main features:

   High performance NXP ICODE Slix chip

   Read distance > 20 cm

   High security: UID, write protection, EAS, AFI

   Multiple tags operation allowed

   Personalized Logo printing, serial number, barcode allowed

   Advanced RFID tag production technology, like flip chip bonding technology, etched aluminum technology

   Green products, ROHS, SGS compliance


Model:GEE-LT-100

Physical
Material Paper overlay, PET substrate
Size 50 mm * 50 mm
Thickness 0.3 mm
Antenna Etched aluminum, 46.8 *46.8 mm, type model:U1012
Printing  Logo printing or white blank
Packing 1,005 pcs/ roll, roll ID: 76 mm, roll OD < 300 mm, 10 rolls /carton
G.W 1.3 kg/ roll
Protocol  IEC/ISO15693 compliance
RF features
Frequency 13.56 Mhz
Chip NXP ICODE Slix
Memory  1 kbits, organized in 32 blocks of 4 bytes each
Read distance > 20 cm
Write endurance 100,000 cycles
Data retention 10 years
Date transfer rate 53 kbit/s
Other features
Security Unique ID, write protecton, EAS, AFI
Anti-collision Multiple tags operation allowed
Environment
Operating condition  -20 ~ 60 Degree Celsius, 5~ 95% RH, no condensation
Storage condition  -10 ~ 45 Degree Celsius, 5~ 95% RH, no condensation
on-shelf life  5 years

As RFID technology gradually involved in normal life, the usage of RFID technology have greatly change the way we living and bring signifition convenience to us.

Digit RFID library, which using RFID technology for management and control, was firstly introduced in National Singapore libraries with NXP ICODE Chip for indentifying and tracking, then the trends rapidly expanded into international, nowadays only in China, the number of digit libraries have exceeded over 100.

That is a tremendous achievement since the RFID technology first applied in early 21st century. And there are abundant reasons for RFID libraries completely replaced the traditional ones.

Advantages of RFID Libraries


Rapid check-out / check-in


The use of RFID reduces the amount of time required to perform circulation operations. The most significant time savings are attributable to the facts that information can be read from RFID tags much faster than from barcodes and that several items in a stack can be read at the same time. While initially unreliable, the anti-collision algorithm that allows an entire stack to be check-out or check-in now appears to be working well.


The other time savings realized by circulation staff are modest unless the RFID tags replace both the EM security strips or RF tags of older theft detection systems and the barcodes of the library management system - i.e., the system is a comprehensive RFID system that combines RFID security and the tracking of materials throughout the library; or it is a hybrid system that uses EM for security and RFID for tracking, but handles both simultaneously with a single piece of equipment. There can be as much as a 50 percent increase in throughput. The time savings are less for check-out than for check-in because the time required for check-out usually is extended by social interaction with patrons.


Simplified patron self check-out / check-in


For patrons using self check out, there is a marked improvement because they do not have to carefully place materials within a designated template and they can check out several items at the same time.
Patron self check-in shifts that work from staff to patrons. Staff is relieved further when readers are installed in book-drops.


High reliability


1. The readers are highly reliable. RFID library systems claim an almost 100 percent detection rate using RFID tags.
2. There is no false alarm than with older technologies once an RFID system is properly tuned.
3. RFID systems encode the circulation status on the RFID tag. This is done by designating a bit as the "theft" (EAS) bit and turning it off at time of check-out and on at time of check-in. If the material that has not been properly check-out is taken past the exit sensors, an immediate alarm is triggered.


High-speed inventorying


A unique advantage of RFID systems is their ability to scan books on the shelves without tipping them out or removing them. A hand-held inventory reader can be moved rapidly across a shelf of books to read all of the unique identification information. Using wireless technology, it is possible not only to update the inventory, but also to identify items which are out of proper order.


Automated materials handling


Another application of RFID technology is automated materials handling. This includes conveyer and sorting systems that can move library materials and sort them by category into separate bins or onto separate carts. This significantly reduces the amount of staff time required to ready materials for re-shelving.


Long tag life
Finally, RFID tags last longer than barcodes because nothing comes into contact with them. Most RFID vendors claim a minimum of 100,000 transactions before a tag may need to be replaced.
