GEE-NT-D8F FPC NFC tags

GEE-NT-D8F FPC NFC tags

D8 mm, 0.25 mm thick, polyamide + etched copper antenna, 13.56 Mhz, 3- 5 cm read distance,  support NXP mifrae UL, ULC, Ntag213, Ntag216, Mifare 1k, ICODE slix chip, endure high temparature up to 150 C,  ground/ singal pad for triggering other devices, IEC14443 A & ISO18092

Download Specification

OverviewSpecificationApplicationsSupport

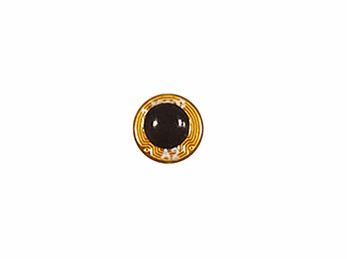

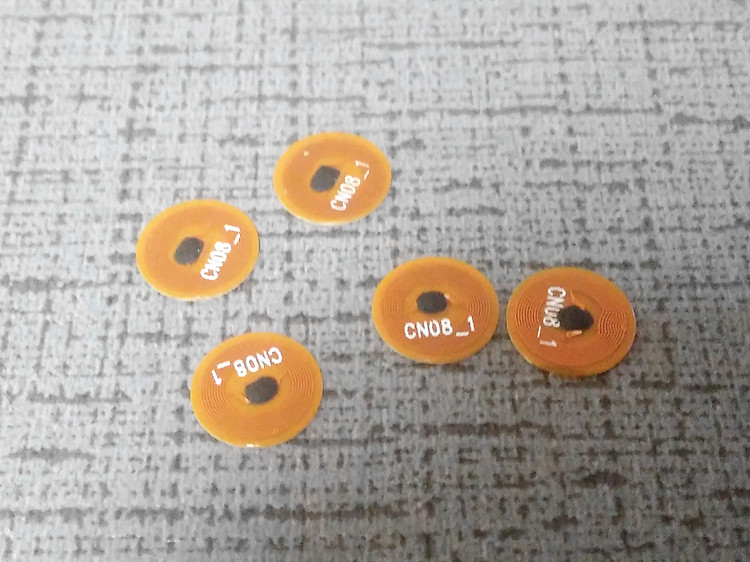

GEE-NT-D8F is a type of FPC NFC tag . Made of PI and etched copper antenna, this type of tags is extremely flexible and could endure high temperature of 150 degree. In addition, it provide ground and signal pads for other devices interaction, for example bluetooth stereo. Widely used in bluetooth products, electronic devices. etc.




Main features:

•  FPC nfc tags, PI + copper antenna, flexiable

•  D8 mm, 0.25 mm thick

•  High performance rfid chips, ntag213, ntag216, icode slix, mifare 1k, f08, ultralight ..

•  High teamperature durable, up to 150 Celsius degress

•  ISO9001 Quality control system and ROHS material guarantee each product is perfect in quality and totally green for environment

Model:GEE-NT-D8F

Physical
Material PI + Etched copper
Size D8 mm or customize
Thickness 0.25 mm
Antenna Etched cooper antenna
Encoding URL, TEXT, SMS..
Protocol IEC14443 A, ISO18092
RF
Operating Frequency 13.56 MHz
Chip Ntag213, Ntag216, Icode slix, mifare 1k, f08, ultralight
Memory 180 Byte/ 924 Byte/ 1k bit/ 1k Byte
Read Distance 3 cm - 5 cm in the air
Write endurances 100,000 cycles
Data retention 10 year
Others
Security UID,Password,encryption algorithm
Bluetooth Trigger by connecting ground & signal pads on the FPC nfc tags
Extended features NFC counter ASCII mirror, UID ASCII mirror,32-bit password protection to prevent unauthorized memory operations ( For Ntag21x series only)
Environment
Operating Temp -40 ~ 70 Degree Celsius, 5~ 95% RH, No condensation
Storage Condition -20 ~ 45 degree Celsuis, 5~ 95% RH, no condensation
Certificate ROHS, SGS

RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
