GEE-UFC-700 PPS RFID Laundry Tag

GEE-UFC-700 PPS RFID Laundry Tag

PPS, D15/ D20/ D25.5 mm , LF/ HF/ UHF, EM, Mifare, M4, H3 chip,  up to 250 C degree, direct ironing allowed, IP68 water proof, IEC14443A/ ISO15693/ ISO18000-6C & EPC Gen2 protocol

Download Specification

OverviewSpecificationApplicationsSupport

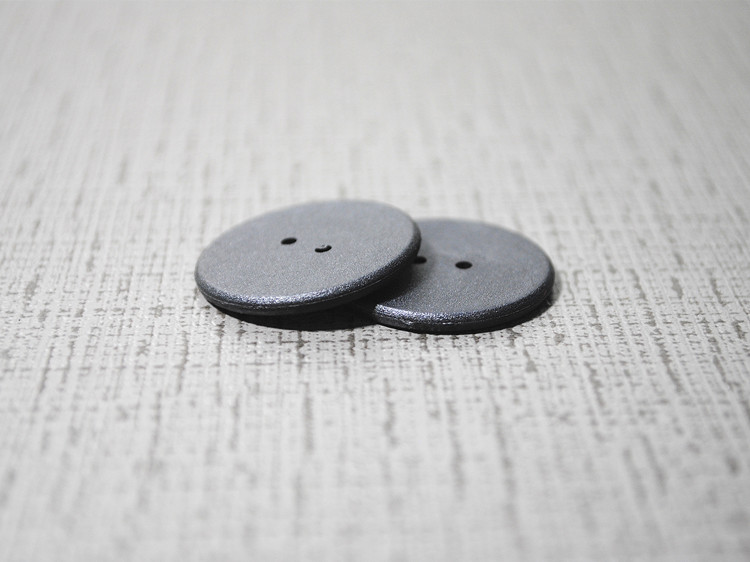

GEE-UFC-700 is a high temperature RFID Tag that is mainly used in laundry industry. Working at LF/ HF/ UHF with PPS enclosure sealed, it can be ensure high temperature and long term washing without damage. Typical application: Laundry industry.



Main features:

•  D15 mm/ 20 mm/ 25.5 mm, 2.7 mm thick

•  PPS material, high thermal distortion temperature of 265 degree celsius

•  Wide range of chip choices, ranging from 125 khz to 13.56 mhz to 860-960 Mhz chips

    UHF: NXP G2XM, Alien Higgs 3/ 4, Impinj M4D/ 4E/ 4QT

    HF: Mifare 1k, Ntag203, UL, ULC, ICODE Sli, ICODE2

    LF:  EM4100, EM4305, T5577, Hitag-s

•  Contactless interface with read distance up to 3 meter ( UHF) or 10 cm ( LF/ HF)

•   IP68 Waterproof, chemical solvent durable, directly ironing  enabled

•   Serial number laser engraving

•   ISO9001 Quality control system just for quality

•   Green material with ROHS and SGS certification



Model:GEE-UFC--700
Physical
Material PPS
Size d15/ d20/ d25.5 mm
Thickness 2.7 mm
Personalization laser engrave Number / text
Color Default Black, optional cream, blue
Life time + 300 washing cycles in 3 years
G.W 2.5 g
Packing 100 pcs/ bag, 1000 pcs/ 10 bags/ ctn
RF features
Frequency 125 kHz/ 13.56 Mhz/ 860- 960 Mhz
Chip 125 kHz: EM4100, EM4305, T5577
13.56 Mhz: Mifare 1k/ 4k, UL, ULC, Ntag213/ 215/ 216, NXP ICODE Sli/ Slix
860- 960 Mhz: H3, Impinj Monza M4, R6
Memory depended on chips
Read distance LF/ HF: 3- 10 cm
UHF: 0.5- 1 meter
Environment
Wash method Industry wash, dry cleaning
Waterproof IP68
Pressure resistance 60 bar
Chemical resistance Detergent, softener, acid, alkali, bleach ( oxygen/ chlorine)
Ironing: Support
Work condition  -20- 50  degree Celsuis,
Storage condition  -40- 60 degree Celsius



The fashion industry was one of the first retail sales sectors to adopt RFID technology

In recent years, mainly in the USA and Europe, dozens of fashion retailers like Marks & Spencer, Levi’s, Throttleman, American Apparel, Le Coq Sportif, Karstadt, Dillards and Galeria Kaufhof have implemented RFID product identification projects to improve their supply chain processes and retail outlet operations.

For such an industry, experiencing seasonal peaks and handling large volumes of goods, the use of RFID tags in the supply chain offers significant advantages:

-    A major improvement in inventory accuracy and speed, resulting in better supply management, greater on-shelf availability and therefore more sales.A clear illustration of the advantages of RFID is that it enables bulk, ‘on-the-fly’ reading, thereby cutting inventory times by 90% and, at the same time, substantially improving inventory accuracy, as RFID leaves little room for human error and information on the style, size and color of an article can all be stored on the tag.

-   Unprecedented fashion logistics productivity gains can be achieved thanks to improved reception, shipment and inventory processes in manufacturing factories, distribution centers and stores.The simultaneous, contactless and ‘on-the-fly’ reading of hanging articles and articles folded into boxes radically reduces the time spent counting and controlling articles during reception and shipment operations. Because it takes only a few seconds to identify all the articles on a pallet, a rack or in a parcel, our customers are spending 12 times less time checking their goods.

Thanks to RFID technology, today we have easier and abundant life than before. It not only change the way we purchasing, but also change the way of production.   It builds an efficient information highway between the manufacturers and end customers, at one end of highway, manufactures can get instant sales status and make right decision on business, while at the other end, customers can directly get the products details and enjoy the fast purchasing  that high technique brought.

Though there are still some concerns upon the newly emerged RFID technology, however as more successful stories come we believe the bright future of RFID technology will come soon.
