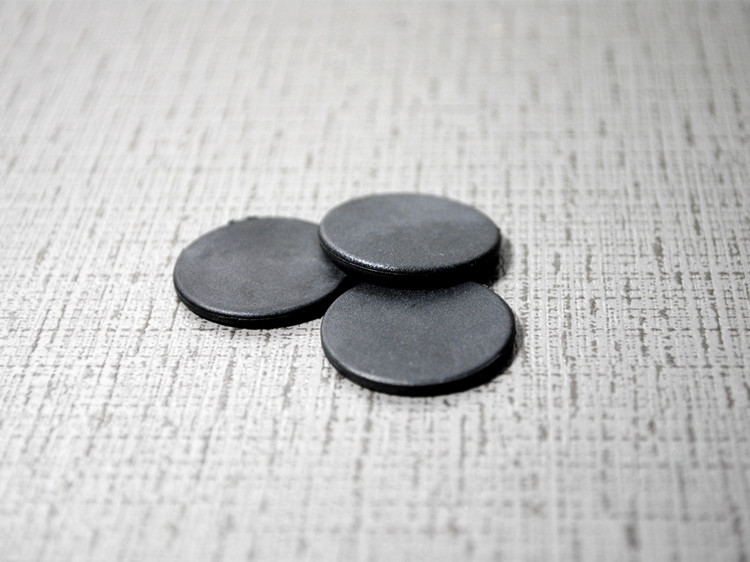

GEE-UFC-500 PPS RFID Laundry Tag

GEE-UFC-500 PPS RFID Laundry Tag

PPS, d15/ d20/ d26/ d30 mm, LF/ HF/ UHF, up to 250 C degree, direct ironing allowed, IP68 water proof, IEC14443A/ ISO15693/ ISO18000-6C & EPC Gen2 protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-UFC-500 is a high temperature RFID Tag that is mainly used in laundry industry. Working at LF/ HF/ UHF with PPS enclosure sealed, it can be ensure high temperature and long term washing without damage. Typical application: Laundry industry.



Main features:

•  D15 mm/ 20 mm/ 26 mm / 30 mm, 3 mm thick

•  Contactless interface

•   High performance RFID chip

•   IP68 Waterproof, chemical solvent durable, directly ironing enabled

•   Laser engraving logo/ number allowed

•   ISO9001 Quality control system just for quality

•   Green material with ROHS and SGS certification

Model:GEE-UFC--500
Physical
Material PPS
Size d15 / d20 mm / d26 mm / d30 mm
Thickness 2.2- 2.6 mm
Personalization Silkcreen logo, laser engrave no/ text
Life time + 200 washing cycles in 3 years
G.W 1- 2.5 g
Packing 100 pcs/ bag, 1000 pcs/ 10 bags/ ctn
RF features
Frequency 125 kHz/ 13.56 Mhz/ 860- 960 MHz
Chip LF: EM4100, EM4305, T5577, Hi-tags
HF: NXP Ntag213/ 215/ 216, Ultralight, UltrightC, Plus 2k/ 4k, Desfire 2k/ 4k/ 8k, Mifare 1k/ 4k, ICODE Slix, ICODE Slix-s..
UHF: H3, impinj M4, R6, M730/ 750/780, NXP U8/ U9/ U10
Memory depended on chip type
Read distance LF/ HF: 3-  10 cm, UHF: 10- 50 cm
Rewrite cycle 10,000 cycles
Data retention 10 years
Environment
Wash method Industry wash, dry cleaning
Waterproof IP68
Pressure resistance 60 bar
Chemical resistance Detergent, softener, acid, alkali, bleach ( oxygen/ chlorine)
Ironing Allowed
Working condition  -20- 250  degree Celsuis
Storage condition  -40- 60 degree Celsius

The fashion industry was one of the first retail sales sectors to adopt RFID technology

In recent years, mainly in the USA and Europe, dozens of fashion retailers like Marks & Spencer, Levi’s, Throttleman, American Apparel, Le Coq Sportif, Karstadt, Dillards and Galeria Kaufhof have implemented RFID product identification projects to improve their supply chain processes and retail outlet operations.

For such an industry, experiencing seasonal peaks and handling large volumes of goods, the use of RFID tags in the supply chain offers significant advantages:

-    A major improvement in inventory accuracy and speed, resulting in better supply management, greater on-shelf availability and therefore more sales.A clear illustration of the advantages of RFID is that it enables bulk, ‘on-the-fly’ reading, thereby cutting inventory times by 90% and, at the same time, substantially improving inventory accuracy, as RFID leaves little room for human error and information on the style, size and color of an article can all be stored on the tag.

-   Unprecedented fashion logistics productivity gains can be achieved thanks to improved reception, shipment and inventory processes in manufacturing factories, distribution centers and stores.The simultaneous, contactless and ‘on-the-fly’ reading of hanging articles and articles folded into boxes radically reduces the time spent counting and controlling articles during reception and shipment operations. Because it takes only a few seconds to identify all the articles on a pallet, a rack or in a parcel, our customers are spending 12 times less time checking their goods.

Thanks to RFID technology, today we have easier and abundant life than before. It not only change the way we purchasing, but also change the way of production.   It builds an efficient information highway between the manufacturers and end customers, at one end of highway, manufactures can get instant sales status and make right decision on business, while at the other end, customers can directly get the products details and enjoy the fast purchasing  that high technique brought.

Though there are still some concerns upon the newly emerged RFID technology, however as more successful stories come we believe the bright future of RFID technology will come soon.
