62 mm x 32 mm x 8 mm, ABS enclosure, Impinj M4 chip, 128 bit EPC, 0.5- 3 meter read distance on metal, IP66 water proof, ISO18000-6C & EPCglobal ClassI Gen2 protocol
Download Specification

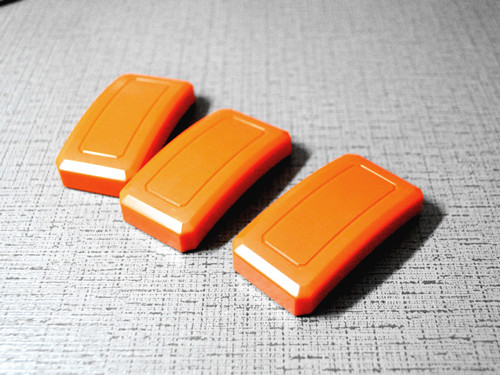

GEE-MUT-101 is a special on metal uhf tag for gas cylinder tracking. Encapsulated by ABS enclosure, it can be perfectly tagging on curve surface with its special curve structure. Typical applications: gas cylinder identification.
Main features:
● Special curve surface to ensure perfectly mate with the gas cylinder.
● 860- 960 MHz, Impinj Monza 4D chip
● ABS enclosure with wave-absorbing material for better RF performance
● 0.5- 3 meter read distance on metal
● Multiple tags operation allowed
● Environment adaptability, resistance to high temperature, water
● Green products, ROHS, SGS compliance
Physical | |
Material | ABS + 3M adhesive tape |
Size | 62 mm * 32 mm * 8 mm, Curve surface diameter: R220 mm |
Weight | 10 g |
Install methods | 3M adhesive tape or screw fixed |
Personalization | logo, text, serial number |
Protocol | ISO18000-6C & EPC ClassI Gen2 |
RF | |
Frequency range | 860-960 MHz |
Chip type | Impinj M4D |
On metal Read distance | 0.5- 3 meter ( depended on reader and antenna) |
Memory | 128 bit EPC |
Data retention | 10 year |
Environment | |
Working Condition | –40 to +85 °C |
Storage Condition | –40 to +85 °C |
Waterproof | IP66 |
Application | Gas Cylinder identification |
In transportation and ticketing feild, the traditional payment is by a simple paper ticket that bears some of security features, like florescent ink, security line, latent image, barcode, infra-red ink. Through it can be prevent most of the fake tickets, however hard work load, low identification rate, and relevant unsafe features enforce institutions had to recruit abundant workforce to maintain normally operation, and now everything was changed as RFID technology deeply implanted into this sector.
At most of bus station or subway station, you will not no longer find any paper tickets any more, which replaced them was a simple recharge card or NFC mobile phones. And in recent years, the pace of changing speeds up dramatically.
Thanks to the RFID technology, you do need to wait in line for ticket checking, all just by a simple touch, and you are allowed to get through, and payment will automatically deducted by the RFID readers.
The benefits are not only in its convenience, but also its security. Each RFID card will have a unique ID, which is permanently stored in its ROM, and can not be rewritten. Meanwhile the communication between the RFID card and RFID readers is encrypted. Let’s take oyster card( London metro card) for example, this type of card is embedded with NXP Mifare Desfire chip, which the chip is integrated with the 3DES encryption technology, and still now there is zero case of password being cracked.
This RFID technology also have been applied into certain of big event, such as Olympics, World Expo…
In the future, we will see more and more case of this advanced RFID technology being applied in our normal life, and therefore change our life for ever.

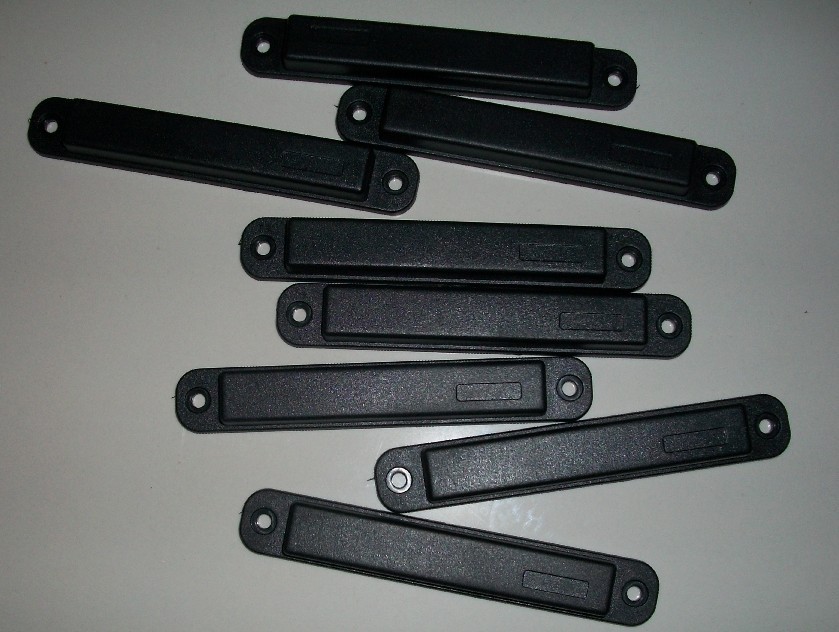

135 mm x 22 mm x 12 mm, ABS enclosure, H3 chip, 9640 inlay, 6~ 10 meter, IP68, ISO18000-6C
