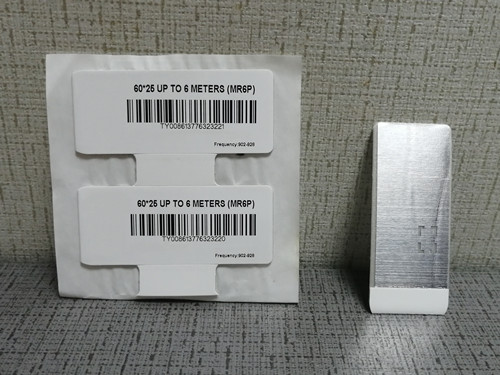

GEE-MUT-F6025 FlexMetal™ UHF RFID Metal Tag

GEE-MUT-F6025 FlexMetal™ UHF RFID Metal Tag

60 mm x 25mm x 1.0 mm, white synthetic label, Impinj Monza R6-P chip, 128 bit EPC, 6 m read distance, Sato/ Zebra thermal printer compliance,  IP68 waterproof,  ISO18000-6C & EPCglobal ClassI Gen2 protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-MUT-F6025 is a flexible uhf rfid metal tag, special designed antenna with ground plane make it tuned on metal surface. Made of white synthetic paper, this type of metal rfid tags is thermal printable by Sato or zebra rfid printer. Typical application: IT asset tracking.  0_rfidzy_20110925191606.jpg0_rfidzy_20110925191606.jpg


Main features:

●  60* 25 * 1.0 mm, white synthetic label

●  Thermal printable, Sato, Zebra RFID printable compliance

●  High performance Impinj Monza R6-P chip

●  6 meter read distance with high identification speed

●  Special antenna design with ground plane, tuned on metal surface

●  IP68 water proof

●  Green products, ROHS, SGS compliance

Model:GEE-MUT-F6025
Physical
Material White Synthetic label, thermal printable
Dimension 60 mm (L) * 25 mm (W) * 1.0 mm (T)
Antenna Etched Aluminum, ground plane
Weight 1.5 g
Attachment Metal surface with mininum diameter of 100 mm
Printer Compatibility Sato, Zebra
Packing 500 pcs/ roll
Protocol ISO18000-6C & EPC C1G2
RF
Frequency EU: 865-868 MHz
US: 902- 928 Mhz
Chip Impinj Monza R6-P
Memory 128 bit EPC, 48 bit TID, 32 bit access/ kill password
Read distance Fixed reader: 6  meter
Handheld: 3 meter
Environment
Working Condition –40 to +85 °C
Application Condition +18 to +35 °C
IP rating IP68

RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
