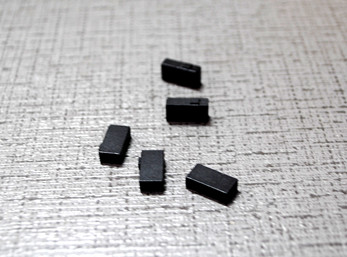

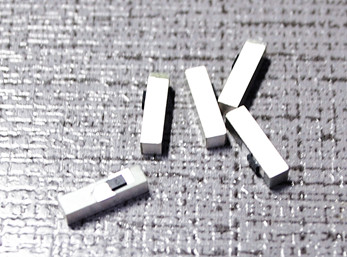

GEE-MUT-403 mini® ceramic uhf metal tag

GEE-MUT-403 mini® ceramic uhf metal tag

10 mm x 5 mm x 3 mm, ceramic material, 865-868 Mhz ( EU)/ 902-928 Mhz ( US),  H3/ H4 /  Impinj M4 / R6 chip,   2 meter read distance, IP68,  ISO18000-6C & EPCglobal ClassI Gen2  protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-MUT-403 is mini on metal uhf tags in RFID industry. Worked at 865-868 Mhz / 902- 928 Mhz with special designed antena, it can be directly attached on metal surface with  2 meter distance. Typical application: tool, small asset tracking




Main features:

●  high performance UHF RFID chip with industry's highest RF performance

●  Highest sensitivity with industry's smallest sizes,  directly applied on metal surface

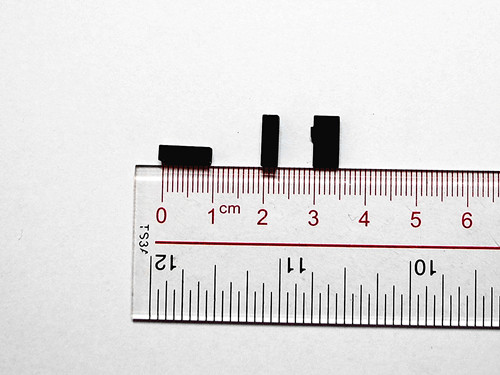

●  Ceramic material, smallest on metal UHF tag in industry, with mini profile of 10mm  x 5  mm x 3 mm

●  2 meter  read distance on metal

●   Multiple tags operation allowed

●   Environment adaptability, resistance to high temperature, water

●   Green products, ROHS, SGS compliance


Model:GEE-MUT-403

Physical
Material Ceramic
Dimension 10 mm (L) * 5 mm (W) * 3 mm (T)
Weight. 2 g
Install methods Film adhesive, permanent liquid adhesive
Finish Painted black
Personalization  logo, Encoding, optional  enclosure
RF
Frequency range 865- 868 Mhz ( EU) / 902- 928 ( US)
Chip type H3, Impinj M4, M4QT, M5
On metal Read distance 4W EIRP reader :up to 2.0 meter
Handheld read reader: up to 0.8 meter
Material compatibility optimized for metal
Environment
Working Condition –40 to +85 °C
Waterproof IP68
Shock and Vibration MIL STD 810-G
Protocol ISO18000-6C & EPC ClassI Gen2
Application  IT asset tracking
Small asset tracking

RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.


Related Products

DescriptionDateDownload
GEE-MUT-403 mini® ceramic on metal UHF RFID tag specification.pdf2015-09-25
1.9 MB
