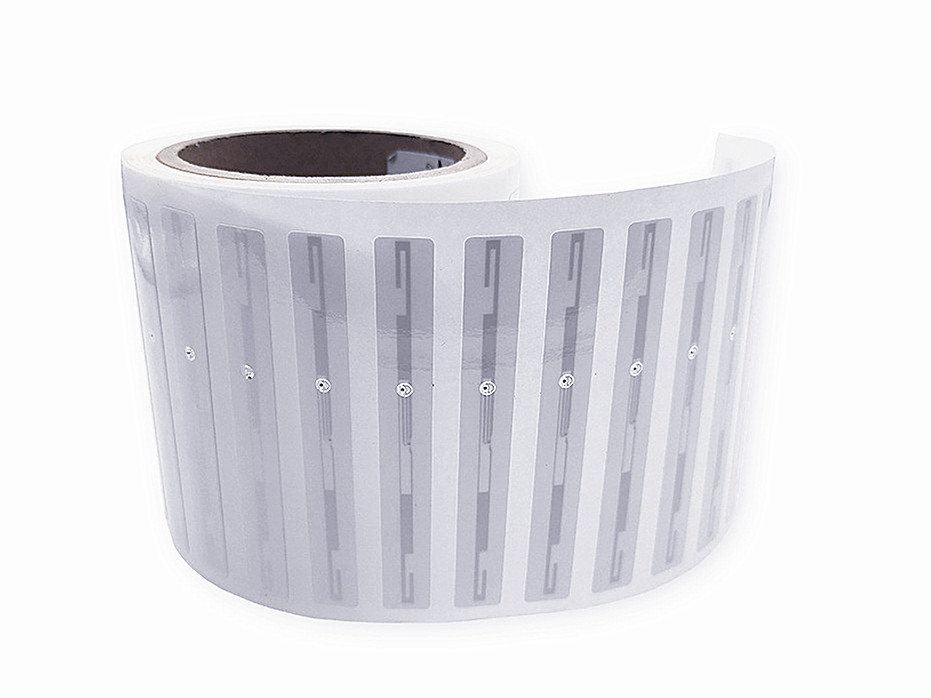

GEE-UT-9703LED UHF RFID LED Tag

GEE-UT-9703LED UHF RFID LED Tag

100x 12 mm, Kiloway KX2005XB-L/T chip with LED,  860~ 960 Mhz, 96 bit - 240bit EPC, 1312 bit user, 64 bit reserve (OTP memory), 6 meter read distance , ISO18000-6C & EPCglobal Class I  Gen2 protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-UT-9703LED is a slim UHF RFID tag for asset management and locating. Worked at 902-928 Mhz with Kiloway KX20005XB-BL chip embedded, this passive UHF tag can be read at distance up to 6 meter with green LED flashing. Typical application: Asset management




Main features:

●   100mm x 12 mm

●   Kiloway KX20005XB-BL high performance rfid chip

●   up to 6 meter in air

●  OTP ( one time programmable) memory, 96 - 240 bit EPC, 96 bit TID, 1312 bit user, 32 bit access/kill passowrd

●   Flashing LED when read the reserve memory

●   Green products, ROHS, SGS compliance

Model:GEE-UT-9703LED
Physical
Material Chrome paper /PET
Size 100 mm x 12 mm
Thickness 0.30 mm
Antenna Etched aluminum, model: 9703LED
LED Green LED flashing when reading, battery free
Printing  white blank, printable
Packing 1,000 pcs/ roll, Roll ID 76 mm, OD< 300 mm
G.W 1.0 kg/ roll
Protocol  ISO18000-6C & EPCglobal Class I Gen 2
RF features
Frequency 902~ 928 Mhz
Chip Kiloway KX2005XB-L/T
OTP Memory (One time programmable) 96-240 bit EPC, 96-192 bit TID, 1312 bit user, 64 bit reserve
Read distance Up to 6 meter
Write endurance 100,000 cycles
Data retention 10 years
Other features
Security TID, password protection
Anti-collision Multiple tags operation allowed
Environment
Operating condition  -20 ~ 85 Degree Celsius, 5~ 95% RH, no condensation
Storage condition  0 ~ 25 Degree Celsius, 5~ 95% RH, no condensation
ESD  +/ -2000V peak
Bending diameter  > 50 mm, tension less than 10 N
Shelf life  2 years



RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
