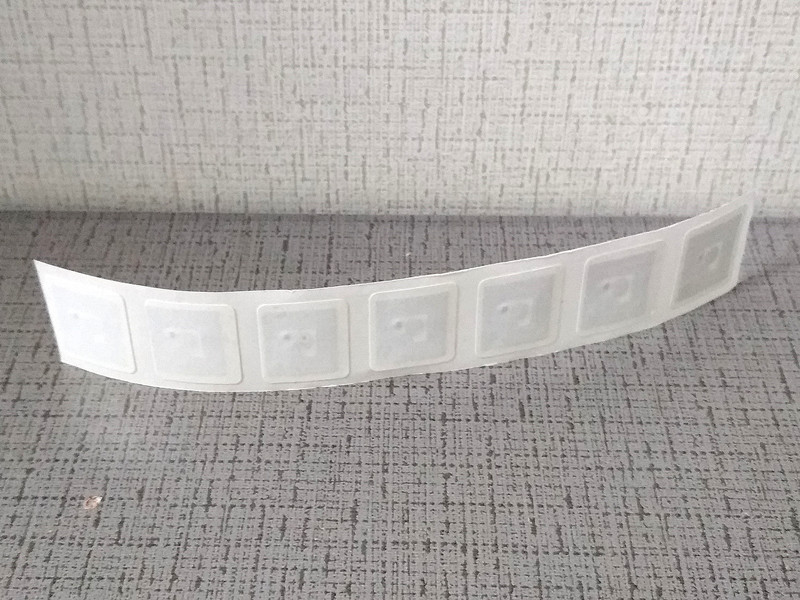

GEE-NT-1515 18 x18 mm NFC tag

GEE-NT-1515 18 x18 mm NFC tag

18 mm x 18 mm, Chrome/  thermal paper or PET, 13.56 Mhz, 4 cm read distance, NXP icode slix, icode slix-2 chip,  ISO15693 protocl

Download Specification

OverviewSpecificationApplicationsSupport

GEE-NT-1515 is a mini type 5 NFC tags that worked at frequency of 13.56 Mhz.  It integrateds NXP ICODE SLIX, SLIX-2, SLX-L, SLIX-S chips with read distance of 4 cm, fully comply with ISO15693 and ISO18000-3 protocol. Typcial application: asset management, anti-fake




Main features:

•  18x 18 mm, NXP ICODE SLIX, SLIX-2, SLX-L, SLIX-S chip, paper tag /  dry inlay / wet inlay

•  4 cm read distance in air

•  Etched aluminum antenna, 18 x 12 mm with excellent RF performance

•  CMYK full color printing,

•  Advanced RFID tag production machine, Flip chip mounter maximize the stability of RFID tags in different batches

•  ISO9001 Quality control system and ROHS material guarantee each product is perfect in quality and totally green for environment

Model:GEE-NT-1515
Physical
Material Paper/PET
Size 18 x 18mm
Thickness 0.30 mm
Antenna Etched Aluminum, 14.5 x 14.5 mm
Printing CMYK 4c printing
Encoding Supported
Packing 2000 piece/ roll, 8 roll/ ctn, G.W: 8 kg/ ctn
Protocol IEC14443 A, ISO18092
RF
Operating Frequency 13.56 MHz
Chip NXP ICODE SLIX, SLIX-2, SLX-L, SLIX-S
Memory 256 - 2528 k bit
Read Distance 4 cm in the air
Write endurances 100,000 cycles
Data retention 10 year
Others
Security UID,Password, AFI protection
Extended features 32-bit  EAS and AFI password
Environment
Operating Temp -40 ~ 70 Degree Celsius, 5~ 95% RH, No condensation
Storage Condition -20 ~ 45 degree Celsuis, 5~ 95% RH, no condensation
Certificate ROHS, SGS

RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
