GEE-AR-W91A 134.2kHz RFID Microchip Scanner

GEE-AR-W91A 134.2kHz RFID Microchip Scanner

182 mm *82 mm*17.5 mm, 134.2 kHz/ 125 kHz, 1.44" OLED , FDX-B,  ID64 tag supported,  ISO11784/ 85, 20 cm read distance for D30 mm ear tag, 500 tags record storage, 800 mAh Li-ion battery,  ISO11784/ 11785 protocol

Download Specification

OverviewSpecificationApplicationsSupport

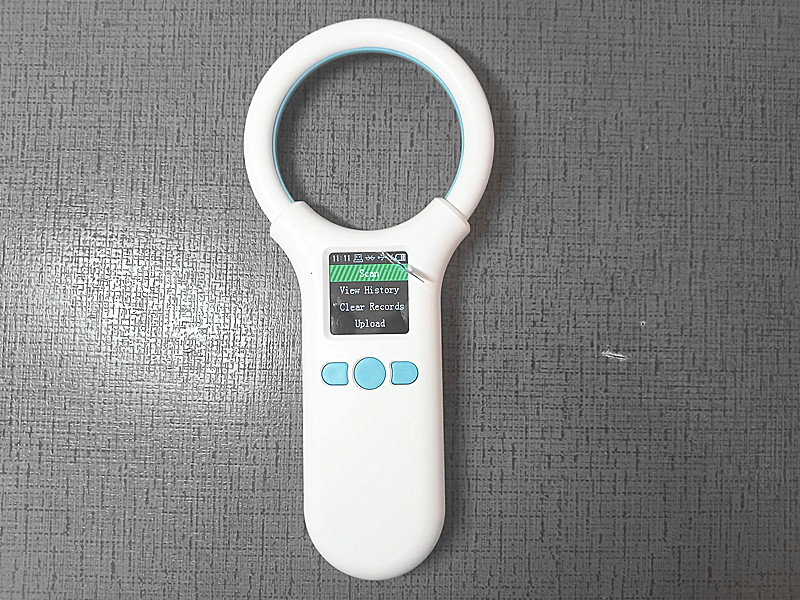

GEE-AR-W91A is a rfid microchip  scanner for animal identification. Worked at 125 - 134.2 khz, it can read FDX-B format and ID64 format microchips at distance of 8 cm, which is compact and easy to operation. Typical application: PET hospital, animal identification.





Main features:

•  182x 82 x  17.5 mm, ABS enclosure

•  134.2 kHz/ 125 kHz

•  500 tag ID record storage

•   Read distance:  20 cm for Φ 30 mm ear tag, 8 cm for 12 mmx 2 mm glass tag

•  1.44" OLED display

•   USB Type-C, Bluetooth, 2.4Ghz wireless interface

•   ISO11784/ 11785, FDX-B and ID64  supported

•   Rechargeable 800 mAh Li-ion battery


Model:GEE-AR-W91A
Physical
Material                 ABS
Dimension                 182 mm(L) x 82 mm(W) x 17.5 mm(H)
Color White or Black
Weight                 72 g
RF / Electrical
Frequency                 134.2 kHz/ 125 kHz
Read distance                 20 cm (Φ 30 mm RFID ear tag)
  8 cm ( 12 mm long RFID glass tag)
Tag Compatibility                 ISO11784/ 11785, FDX-B and ID64 EMID
Display                 1.44" OLED
Data storage                 500 Tag ID record, support USB, Bluetooth, 2.4 GHz wireless upload
Power supply                 Rechargeable  800mAh lithium battery, 6 hours working time
HID keyboard Supported, output tag ID at the curor
Interface                 USB Type-C, Optional bluetooth, 2.4 Ghz wireless
Buzzer     Built-in
Environment
Working condition 0 ~ 50°C , 5~90% RH
Storage condition                 -20 ~ 60°C, 5~ 95% RH

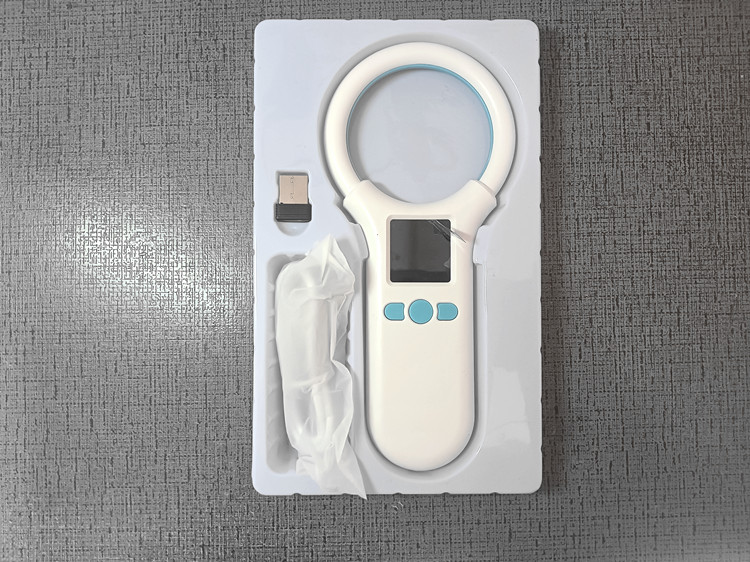

Packing
Reader 1x
Uswer Manual    1x
USB cable         1x
2.4 G Wireless adapter (optional) 1x



As RFID technology gradually involved in normal life, the usage of RFID technology have greatly change the way we living and bring signifition convenience to us.

Digit RFID library, which using RFID technology for management and control, was firstly introduced in National Singapore libraries with NXP ICODE Chip for indentifying and tracking, then the trends rapidly expanded into international, nowadays only in China, the number of digit libraries have exceeded over 100.

That is a tremendous achievement since the RFID technology first applied in early 21st century. And there are abundant reasons for RFID libraries completely replaced the traditional ones.

Advantages of RFID Libraries


Rapid check-out / check-in


The use of RFID reduces the amount of time required to perform circulation operations. The most significant time savings are attributable to the facts that information can be read from RFID tags much faster than from barcodes and that several items in a stack can be read at the same time. While initially unreliable, the anti-collision algorithm that allows an entire stack to be check-out or check-in now appears to be working well.


The other time savings realized by circulation staff are modest unless the RFID tags replace both the EM security strips or RF tags of older theft detection systems and the barcodes of the library management system - i.e., the system is a comprehensive RFID system that combines RFID security and the tracking of materials throughout the library; or it is a hybrid system that uses EM for security and RFID for tracking, but handles both simultaneously with a single piece of equipment. There can be as much as a 50 percent increase in throughput. The time savings are less for check-out than for check-in because the time required for check-out usually is extended by social interaction with patrons.


Simplified patron self check-out / check-in


For patrons using self check out, there is a marked improvement because they do not have to carefully place materials within a designated template and they can check out several items at the same time.
Patron self check-in shifts that work from staff to patrons. Staff is relieved further when readers are installed in book-drops.


High reliability


1. The readers are highly reliable. RFID library systems claim an almost 100 percent detection rate using RFID tags.
2. There is no false alarm than with older technologies once an RFID system is properly tuned.
3. RFID systems encode the circulation status on the RFID tag. This is done by designating a bit as the "theft" (EAS) bit and turning it off at time of check-out and on at time of check-in. If the material that has not been properly check-out is taken past the exit sensors, an immediate alarm is triggered.


High-speed inventorying


A unique advantage of RFID systems is their ability to scan books on the shelves without tipping them out or removing them. A hand-held inventory reader can be moved rapidly across a shelf of books to read all of the unique identification information. Using wireless technology, it is possible not only to update the inventory, but also to identify items which are out of proper order.


Automated materials handling


Another application of RFID technology is automated materials handling. This includes conveyer and sorting systems that can move library materials and sort them by category into separate bins or onto separate carts. This significantly reduces the amount of staff time required to ready materials for re-shelving.


Long tag life
Finally, RFID tags last longer than barcodes because nothing comes into contact with them. Most RFID vendors claim a minimum of 100,000 transactions before a tag may need to be replaced.
