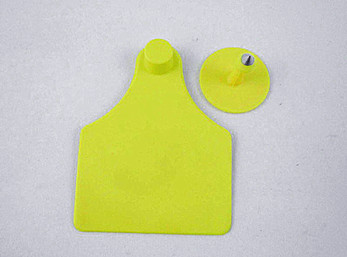

GEE-AT-200 Cattle rfid ear tag

GEE-AT-200 Cattle rfid ear tag

100 mm ( D) * 74 mm (d) x 6 mm ( H), TPU material,  EM4305 / ICODE SLIX/ H3/ R6 chip,  > 10 cm read distance, IP68,  ISO11784/ 11785, ISO18000-6C & ISO15693 protocol compliance

Download Specification

OverviewSpecificationApplicationsSupport

GEE-MUT-301.jpgGEE-AT-200 is a special type rfid tag tag is used for cattle/ sheep identification and tracking. Made of environment-friend TPU material and throughout pre-sterilization, this type of ear tag strictly meets with sanitary and ROHS standard, nontoxic and safe, which is allowed to directly applied on animal ear without potential infection.


Main features:

¡ñ  High quality TPU material, nontoxic, good biological compatibility

¡ñ  RFID chip embedded, over 512 bit user memory for personalization

¡ñ  Contactless features, over 10 cm read distance for easy operation

¡ñ   Multiple frequency to be applied as per occasions

¡ñ   Logo, text, serial number laser engraving service

¡ñ   Fully comply with ISO11784/ 11785 and ISO FDX-B protocol

¡ñ   Green products, ROHS, SGS compliance


Model:GEE-AT-200
Physical ¡¡
Material TPU
Size Female: 100 mm ( L) x 74 mm ( W) x 6 mm ( H)
Male:  30 mm ( D) x 2 mm ( H)
Color Yellow
Weight 19 gram
Personalization Laser Logo, serial number
LF ¡¡
Frequency 134 khz/ 13.56 Mhz/ 860- 960 Mhz
Chip EM4100, EM4305, Hi-tags
Read distance 10 cm
Memory Various, as per chip type
Antenna Copper coil
Protocol  ISO11784/ 85, ISO FDX-B, EPC Class I Gen2
HF  ¡¡
Frequency 13.56 Mhz
Chip NXP ICODE Sli, Mifare 1k, Ntag213, Ntag216
Read distance 5 cm- 30 cm
Memory As per chip type
Antenna Copper coiling/ Etched aluminum antenna
Special feature EAS ( Electrical artical surveillance), AFI
Protocol  IEC14443A, ISO15693
UHF ¡¡
Frequency 860- 960 Mhz
Chip H3, Impinj Monza 4, Impinj Monza R6
Read distance 6- 10 meter
Memory As per chip type
Antenna Etched aluminum antenna
Special feature EAS ( Electrical artical surveillance)
Protocol  ISO18000-6C & EPC C1G2
Environment ¡¡
Working condition -20° C~ 70° C
Storage condition -10° C~ 45° C
Waterproof  IP68

Each year about 1 in 6 people in the United States gets sick from eating contaminated food, according to the Centers for Disease Control (CDC).

Analysts estimate that as much as 70 percent of the Chateau Lafite floating around Chinese wine cellars is fake.

More …..

Modern life created abundant goods for everyone, when we enjoy the rich life that modern science created, do we realize that the safety of foods is become a severe problems?

Some of the black-heart manufactures will take other’s health aside by using the cheapest or contaminated material to make the foods or beverage, while others will forge their products as branded ones.

How to guarantee food safety, how to protect us from faked products? The traditional method is by printed label with some security features, however as fake technology developed, this methods seemed childish for the professionals.

Therefore RFID technology emerged. Not like the traditional printed label, each label contains an embedded chip, which bears its unique ID and is unable to copy or revise by current technology. When each tags are made, the database will store this ID into their database through wireless network, and in retails, the sold products will again scanned, selling statues will refreshed as sold out. Through this tracking system, manufactures not only guarantee their interest, but also increase customer’s satisfactions and sales cycles.

So what on earth RFID technology can bring to Food and Beverage industry?

     Increase Inventory Accuracy in Retail

ü  Improved Inventory Accuracy

ü  Avoid out-of-stock

ü  Faster Inventory Counting

    Loss prevention at POS

ü  EAS

ü  Shrink Reduction

    Improve Transparency

ü  Authenticity checking

ü  Reducing inspection costs

Related Products

  • GEE-AT-100 RFID EID Tag >

    30.6 mm ( D) * 5.5 mm (d) x 11.5 mm ( H), TPU material,  134.2 kHz,  > 10 cm read distance, FDX-B format,  ICAR certificate

  • GEE-AT-400 RFID ear tag >

    100 ( L) * 30 mm( W), TPU material,  860- 960 Mhz, Impinj Monza R6 chip, 6- 10 m read distance, IP68

DescriptionDateDownload
GEE-AT-200 Cattle ear Tag specification.pdf2012-10-05
1.1 MB
