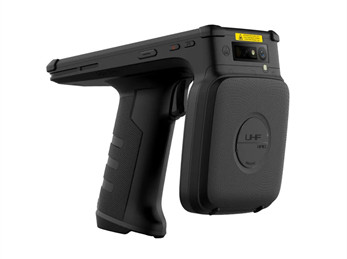

Utouch2 Handheld UHF RFID reader

Overview Datasheet Download

Utouch 2 is a Gen2 handheld rfid reader based on Andriod 12.0 OS. Configured with MT8788 Octa core CPU, 4GB RAM + 64 GB ROM, 5.5“ touch screen, impinj E710 uhf rfid module and optional NFC and 1D/2D scanner, it can support both UHF, HF and 1D/ 2D barcode scanning with excellent read distance of up to 20 meter and rfid tag inventory speed of 700 tags/second. 4G/3G/2G/ Wifi/ Bluetooth wireless communication also enable user to easily and fastly connected into network, which is widely used in retail, warehousing, public assets management, etc.


Main features

• MTK8788 8 core CPU, 2.8 Ghz, 70% computing performance improvement, 110% graphic performance improvement than Utouch

• 5.5 " touch screen, 4 GB RAM + 64 GB ROM

• 11700 mAh Li-ion battery ( added device battery), more battery capacity compared to Gen 1 Utouch

• 4G/ 3G/ 2G/ Wifi/ Bluetooth wirelss communication, GPS/ Beidou/ Glonass Positioning

• FCC ( North America) 902~ 928 Mhz, ETSI ( EU) 865~ 868 Mhz

• Impinj E710 UHF RFID chip, 1- 33 dBm RF ouptut

• > 9 meter read distance ( H47 tag), > 700 tags/second inventory speed

• Optional NFC module and 1D/2D barcode engine

• ISO18000-6C & EPC C1G2 protocol, optional IEC14443A/ B, ISO15693 protocol

Software interface- system

utouch-wifi bluetooh.png

Software interface- UHF reader

Software interface- Phone/ Camera

utouch- photo.png

Physical Characteristics

��

User Environment

��

Dimensions

170(H) * 80(W) *132.7(T)mm

Operating Temp

-20 C to +50 C

Weight

630g

Storage Temp

-40 C to + 70 C

Display

5.5 inch, 1440*720

Humidity

5% to 95% RH non-condensing

Touch Panel

Multi-touch panel, gloves and wet hands supported

Drop

Multiple 2.0 m drops to marble across the operating temperature range

Power

11700mAh (Host battery 5000mAH + Grip battery 6700mAh replaceable)

Tumble

1,000 1.64 ft./0.5 m tumbles (2,000 impacts)

Bottom type-C USB interface, support QC 3.0, support intelligently identifying PC and charger;

Waterproof

IP67

Support charging cradle for charging the pistol grip.

ESD

±15kV Air discharge, ±8kV direct discharge

SIM Card Slot

SIM+TF

Expansion Slot

Micro SD Card, 256GB SDHC compatible

Notification

Sound, Vibrator, LED indicator

Keypad

Volume +, Volume -, Power on/off button, 2 scan buttons, pistol grip scan button, and 1 customer key

Sensor

Gavity sensor, light sensor, distance sensor, electronic compass, gyroscope

Performance Characteristics

��

Wireless

��

CPU

Octa core MTK8788 2.0GHz

WLAN

IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI 6)

Android 12.0

4G/ 3G/ 2G

4G:B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41

RAM+ ROM

4GB+64GB

3G: B1/B2/B5/B8/B34/B39/BC0

2G: 850/900/1800/1900MHz

Bluetooth

Bluetooth 4.2 (Support BLE)

GNSS

GPS/AGPS, GLONASS, Beidou

UHF

��

Barcode Scanning

��

Frequency

840-960MHz (may be slightly different depending on the country or region), default 902-928MHz

Scan Engine

2D Image scan engine

Protocol

ISO-18000-6C, EPCC1G2

1D Symbologies

UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5, Codabar, MSI ,Code11, etc.

Antenna

5dBi circular polarization, default as 920-925MHz

2D Symbologies

PDF417, MicroPDF417,Data Matrix, Maxicode, QR Code, MicroQR, Aztec, etc.

Power

1~33dBm

Reading Range

>9m @impinj H47 (depending on the tag and environment)

Writing Range

0- 6m (depending on the tag and environment)

Multi-tag reading

700 tags/second@impinj H47

Note

*Ranges and rates depend on tags and environment

NFC

��

Camera

��

Protocol

Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A encrypted tags (Mifare one S50, S70 and the compatible cards), support NFC protocol and Identification Cards.

Camera

Front camera:5M pixel

Frequency

13.56 MHz

Rear camera: 13M pixel

Accessory

��
