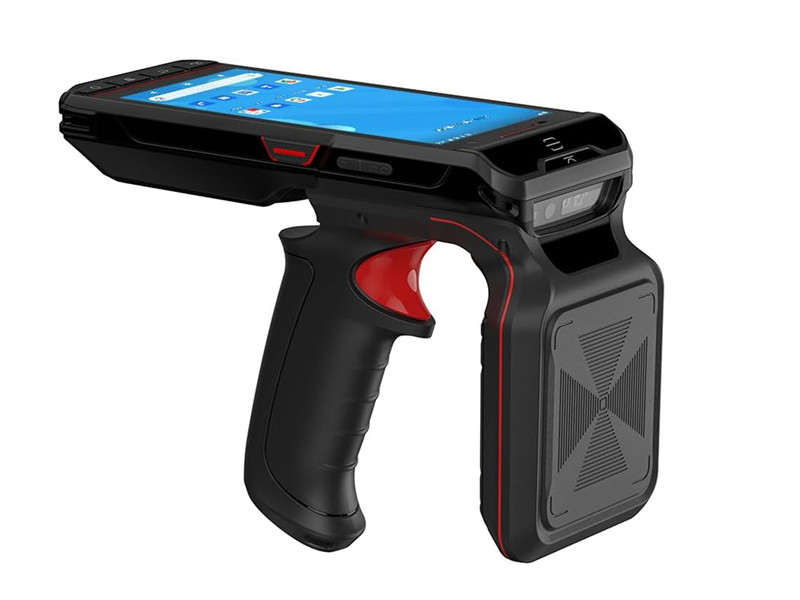

G2 Handheld UHF RFID reader

G2 Handheld UHF RFID reader

Overview Datasheet Download

G2 is a industrial leading handheld rfid reader based on Andriod 10/ 13 OS. Configured with MT6762  8 core CPU, 4GB RAM + 64 GB ROM, 5.5“ LCD with touch screen, high performance uhf rfid module and optional NFC and 1D/2D scanner, it can support both UHF, HF and 1D/ 2D barcode scanning with excellent read distance of up to 15 meter and rfid tag inventory speed of 500 tags/second. 4G/3G/2G/ Wifi/ bluetooth wireless communication also enable user to easily and fastly connected into network, which is widely used in retail, warehousing, public assets management, etc.




Main features

•   MT6762 8 core CPU, 1.8 Ghz, 4 GB RAM + 64 GB ROM

•   5.5 " LCDwith touch screen ( 720P), 8000 mAh Li-ion battery

•   FCC ( North America)  902~ 928 Mhz,  ETSI ( EU) 865~ 868 Mhz

•   High performance UHF RFID module, 0- 33 dBm RF

•   up to 15 meter read distance, > 500 tags/second inventory speed

•   Optional NFC module and 1D/2D barcode engine

•   Android 10/ 13 OS, provide Android SDK, APK and source code

•   4G/3G/2G, Wifi, Bluetooth, GPS supported

•   ISO18000-6C & EPC C1G2 protocol, optional IEC14443A/ B, ISO15693 protocol



Software interface







Physical Characteristics 　 User Environment 　
Dimensions 179mm(L)×74.5mm(W)×150mm(H)   Operating Temp -10 C to +50 C
Weight 750g   Storage Temp -20 C to +60 C
Display 5.5", 1440 x 720 pixel touch LCD   Humidity 5%- 95% RH, no condensing
Touch Panel Multi-touch panel, gloves and wet hands supported   Drop Multiple 1.2 m drops across the operating temperature range
Power Device battery: removable 8000mAh rated capacity   Tumble 1,000 1.64 ft./0.5 m tumbles (2,000 impacts)
  Charing time:< 3 hours, standby time: > 350 hours   Waterproof IP65
Expansion card slot 1* Nano SIM card, 1* TF card, 1* POGO Pin   ESD ±15kV Air discharge, ±8kV direct discharge
Communication Interface 4G/3G/2G, Bluetooth 5.0, WIFI, USB Type-C
Speaker >92 db
Keypad Volume +, Volume -, Power on/off button, 2 scan buttons
Sensor Gravity, Light sensor, proximity sensor, Vibration motor

Performance Characteristics 　 Wireless 　
CPU MT6762 Octa core 2.0GHz   WLAN IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI)
RAM+ ROM 4GB+64GB   4G/ 3G/ 2G 4G: FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
Expansion Memory up to 256 GB Micro SD (TF) card     3G: WCDMA 850/900/1900/2100MHz
OS Android 10.0/ Android 13.0     2G: GSM 850/900/1800/1900MHz
      Bluetooth Bluetooth 5.0 (Support BLE)
      GNSS GPS/AGPS, GLONASS, Beidou

UHF 　 　 Barcode Scanning



Frequency US 902- 928 Mhz, EU 865- 868 Mhz   2D Scan engine N6602-W2
Protocol ISO18000-6C, EPC C1G2   1D Symbologies UPC, EAN, Code 39, Code 128, Code11,
Antenna 4.65 dBi circular polarized antenna     Interleaved 2 of 5, Discrete 2 of 5
Power 0~33 dBm, software adjustable   2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC- 39,
Read distance up to 15 meter     Datamatrix, QR code, Micro QR code, Aztec,
Inventory speed > 500 tags/second     MaxiCode, HanXin

NFC



　 Camera



Protocol ISO14443A/B,  ISO15693   Camera Front camera:2M pixel
Frequency 13.56 MHz     Rear camera: 13M pixel

Accessory 　 　 　 　

　

      USB Charger Type-C USB cable
描述日期下载
G2 Handheld UHF RFID reader specification.pdf2025-03-06
602 KB
G2 Handheld UHF RFID Reader User Manual-v1.0.pdf2025-03-06
1.1 MB
G2 UHF RFID Reader SDK-En.zip2025-03-06
28.3 MB
