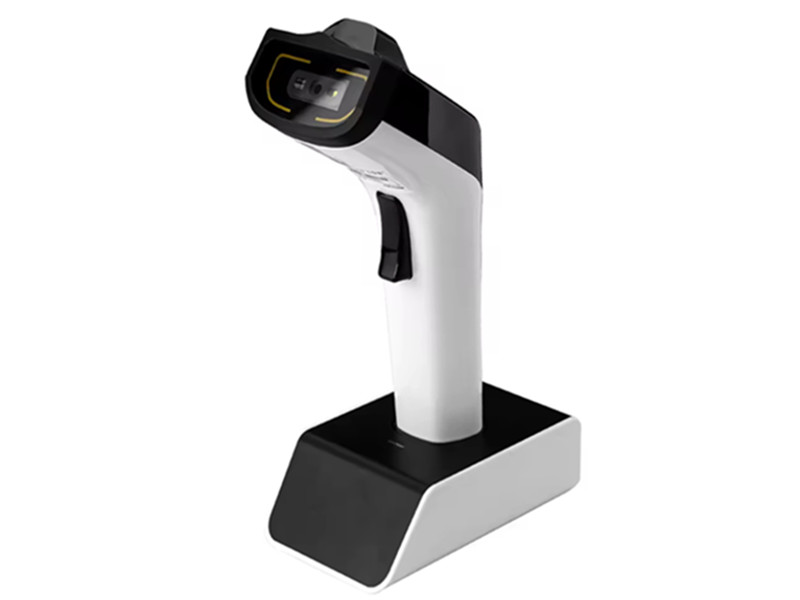

GEE-UR-DS8500 Handheld UHF RFID Reader
GEE-UR-DS8500 is an economic handheld UHF rfid scanner. Integrated 1D & 2D symbologies and Impinj E310 UHF RFID module, it can fastly read 1D & 2D barcode and UHF RFID tag's EPC number and output data through Bluetooth, 2.4 G wireless or USB interface. Typical application: Retail store, warehouse management
Main features:
• 190x 80 x 62 mm, Aluminum alloy enclosure
• FCC ( North America) 902~ 928 Mhz, ETSI ( EU) 865~ 868 Mhz
• Impinj E310 UHF Module, up to 50 cm read distance
• 1D & 2D Barcode & UHF RFID Tag supported
• Bluetooth, 2.4G wireless, USB interface
• ISO18000-6C & EPC C1G2 protocol, Walmart ARC spec tag supported
| Physical Characteristics | UHF | ||
| Dimensions | reader 80mm(L)×62mm(W)×190mm(H) | Frequency | US 902- 928 Mhz, EU 865- 868 Mhz |
| charging dock 111mm (L)x 75mm(W) * 40mm(H) | Protocol | ISO-18000-6C, EPCC1G2 | |
| Weight | 500g | UHF module | Impinj E310 |
| 1D & 2D Symbologies | 640* 480 pixel CMOS | Antenna | 2dBi ceramic antenna |
| UHF | Impinj E310 UHF RFID module | Power | 5~27dBm, software adjustable |
| Interface | Bluetooth, 2.4G wireless, USB | Reading Range | up to 50 cm |
| Battery | 2000mAh Li-ion battery, 12 hours continuours work | ||
| Charging dock | DC5V, 5-7 hours full charge time | ||
| Barcode Scanning | Wireless | ||
| Scan Element Type | CMOS | Bluetooth | Support HID / SPP / BLE mode, 10m / 33ft distance. |
| Optical Resolution | 640*480 | 2.4 G Wireless | Support RF DONGLE HID-KBW and RF DONGLE AS VIRTUAL |
| Scan Speed | 200 times/second | COM mode, up to 100m / 330ft distance | |
| Resolution | 1D ≥4mil, 2D ≥5mil | ||
| Depth of field | EAN-13 50mm- 200mm (13 mil) | ||
| Code39 40mm- 100mm (5 mil 10 byte) | |||
| QR Code 25mm- 240mm (20 mil 16 byte) | Environment | ||
| Data Matrix 50 mm- 100 mm (10 mil 20 byte) | Operating Temp | -10 C to +50 C | |
| 1D Symbologies | UPC,EAN ( UPCA / UPCE / EAN-8 / EAN-13) | Storage Temp | -20 C to +60 C |
| ISBN ( Bookland ), Code 39 , Code 32 | Humidity | 5%- 95% RH, no condensing | |
| Code 128, Code 93, Codabar, Interleaved 2 of 5 | |||
| Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 | |||
| GS1 DataBar, GS1 DataBar Limited, GS1 DataBar | |||
| 2D Symbologies | QR Code,Data Matrix, Aztec, PDF417, MicroPDF417 | ||
| MaxiCode, PostNet, PLANET, Australia, Royal Post | |||
| CODABLOC F Composite Codes (CC-A, CC-B, CC-C) | |||
| Accessory | |||
 |
 |
||
| USB cable | Charing dock | ||
| 描述 | 日期 | 下载 |
|---|---|---|
| GEE-UR-5000 Handheld UHF RFID reader specification.pdf | 2012-10-05 |  1.1 MB |
