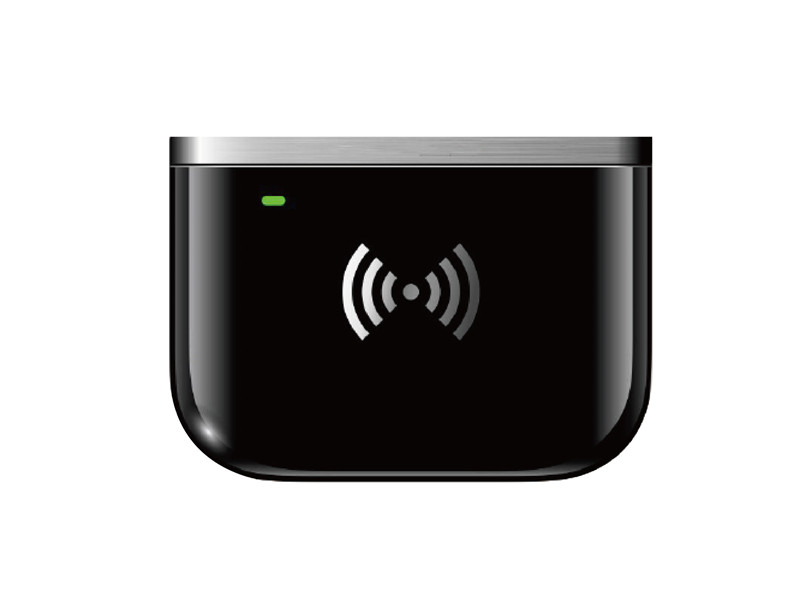

GEE-UR-A7 Portable UHF RFID Reader

Overview Datasheet Download

GEE-UR-A7 is a C series portable UHF RFID reader with USB Type-C & Bluetooth 5.0 Interface. Worked at 902-928 Mhz, it can read rfid tag at distance of 30 cm with high inventory speed, support Android, IOS and WIndows OS, which is widely used in tag encoding, asset management, etc.

Video list

A7 Portable UHF RFID reader writer Introduction

https://youtu.be/yugEN1IrMEA

C Series UHF RFID Reader Demo software guidance Part I -setting

https://youtu.be/1QBAxyoVhwM

C Series UHF RFID Reader Demo software guidance Part II - Read

https://youtu.be/sLa29PVIKjQ

C Series UHF RFID Reader Demo software guidance Part III - Write

https://youtu.be/HDKIlkMBHCI

Android/ IOS APP

Windows Software

Main features:

• 62.5 x 48 x 9 cm, PC enclosure

• 902-928 Mhz, ISO18000-6C/6B RFID tag supported

• 0- 18 dbm output, 0- 30 cm read distance/- 10 cm write distance

• USB Type-C & Bluetooth 5.0 interface

• Support Windows, Andriod, IOS, provide C++, C#, JAVA source code

• CE, FCC certificate

Physical	��
Material	PC
Size	62.5 mm( L) x 48 mm ( W) x 9 mm (H)
Weight	37 g
Interface	USB Type-C, Bluetooth 5.0
Protocol	ISO18000-6C/ 6B, EPCglobal Class I Gen 2
RF	��
Frequency	902~ 928 Mhz
Antenna	Built-In circular polarized antenna
RF output	0- 18 dBm ( software adjustable, +1 dbm/ stp)
Read distance	0- 30 cm
Write distance	0- 10 cm
Inventory speed	50- 100 tags/ second
Power supply	DC5V
Rated power	1.2W @18 dbm
Software	��
SDK	provide APP & demo software, Java, Python, C#, C++ souce code and API
OS	Support Android, IOS and Windows
Environment	��
Operating condition	-20 ~ 70 C, 5~ 95% RH, no condensation
Storage condition	-10 ~ 45 C, 5~ 95% RH, no condensation
Waterproof	IP65
Certificate	CE, FCC, CCC

��	��	��
GEE-UR-A7 Portable UHF RFID Reader.pdf	2025-01-16	415 KB
A7 Portable UHF RFID Reader User Manual-v1.0.pdf	2025-01-16	1.6 MB
A7 UHF RFID Reader SDK-EN.zip	2025-01-16	35 MB
