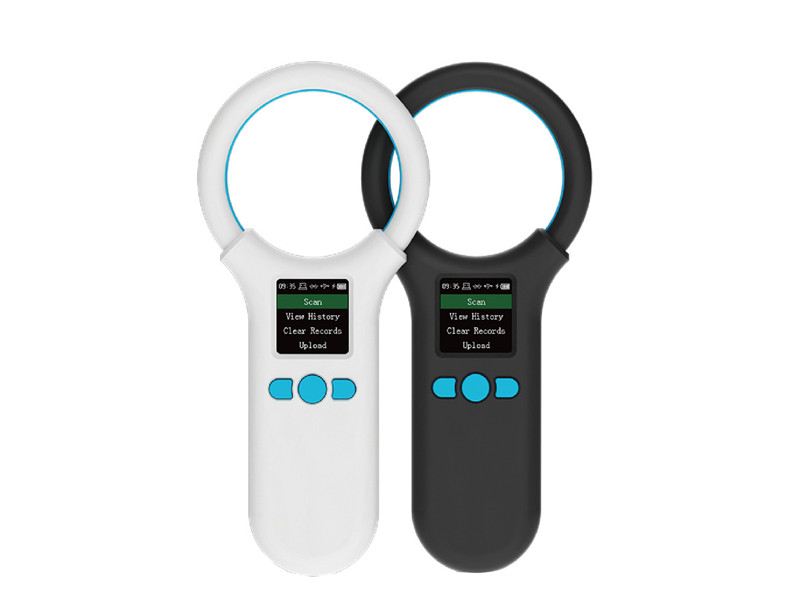

GEE-AR-W91A 134.2kHz RFID Microchip Scanner

Overview Datasheet Download

GEE-AR-W91A is a rfid microchip scanner for animal identification. Worked at 125 - 134.2 khz, it can read FDX-B format and ID64 format microchips at distance of 8 cm, which is compact and easy to operation. Typical application: PET hospital, animal identification.

Main features:

• 182x 82 x 17.5 mm, ABS enclosure

• 134.2 kHz/ 125 kHz

• 500 tag ID record storage

• Read distance: 20 cm for Φ 30 mm ear tag, 8 cm for 12 mmx 2 mm glass tag

• 1.44" OLED display

• USB Type-C, Bluetooth, 2.4Ghz wireless interface

• ISO11784/ 11785, FDX-B and ID64 supported

• Rechargeable 800 mAh Li-ion battery


Physical	��
Material	ABS
Dimension	182 mm(L) x 82 mm(W) x 17.5 mm(H)
Color	White or Black
Weight	72 g
RF / Electrical	��
Frequency	134.2 kHz/ 125 kHz
Read distance	20 cm (Φ 30 mm RFID ear tag)
��	8 cm ( 12 mm long RFID glass tag)
Tag Compatibility	ISO11784/ 11785, FDX-B and ID64 EMID
Display	1.44" OLED
Data storage	500 Tag ID record, support USB, Bluetooth, 2.4 GHz wireless upload
Power supply	Rechargeable 800mAh lithium battery, 6 hours working time
HID keyboard	Supported, output tag ID at the curor
Interface	USB Type-C, Optional bluetooth, 2.4 Ghz wireless
Buzzer	Built-in
Environment	��
Working condition	0 ~ 50°C , 5~90% RH
Storage condition	-20 ~ 60°C, 5~ 95% RH
Packing	��
Reader	1x
Uswer Manual	1x
USB cable	1x
2.4 G Wireless adapter (optional)	1x

��	��	��
W91A Output format configuration software	2025-05-12	3.7 MB
GEE-AR-W91A 134.2khz RFID Microchip Scanner Specification.pdf	2025-05-12	1.1 MB
