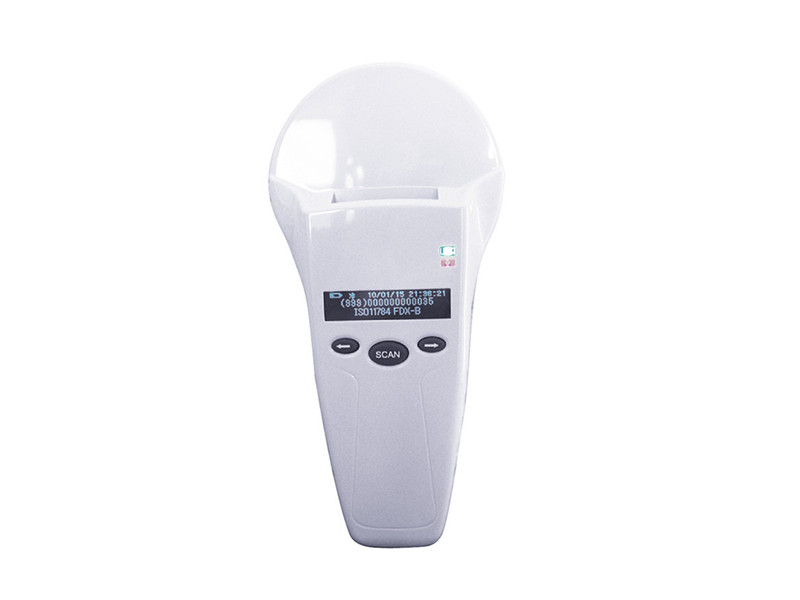

GEE-AR-580 134.2 kHz handheld RFID Animal reader

Overview Datasheet Download

GEE-AR-580 is a handheld RFID reader for animal identification. It worked at 134.2 kHz/ 125 khz, supported FDX-B, HDX and ID64 tag identification, fully comply with ISO11784/ 11785 protocol. Typical appliation: animal management



Main features:

• 260x 140 x 33 mm, ABS enclosure

• 134.2 kHz/ 125 kHz

• 128 x 32 pixel OLED display

• up to 7000 tags storage

• Read distance: 17 cm for Φ 30 mm ear tag, 8.5 cm for 12 mmx 2 mm glass tag

• ISO11784/ 11785, FDX-B, HDX and ID64 supported

• rechargeable Li-ion battery

• USB 2.0, bluetooth interface


Physical	��
Material	ABS
Dimension	260 mm(L) x 140 mm(W) x 33 mm(H)
Weight	550 g
Certification	RHOS, CE, Bluetooth
RF / Electrical	��
Frequency	134.2 kHz
Read distance	17 cm (Φ 30 mm RFID ear tag), 20 cm for HDX
Read distance	9 cm ( 12 mm x 2 mm RFID glass tag )
Tag Compatibility	ISO11784/ 11785, FDX-B, HDX and ID64
CPU	ARM ( STM32)
Display	128 x 32 pixel OLED
Data storage	32 kB EEPROM, 7000 record
System lock	Built-in
Power supply	chargebale Li-ion battery, 12 hours working time
Communication inferface	bluetooth and USB
Acoustic indication	1 Monotone buzzer
Optional feature	1D barcode scanner
Language	English, Chinese, French ,German, Spanish, Portuguese, Duthc, Danish, Russian
Environment	��
Working condition	-30 ~50°C , 5~90% RH
Storage condition	0 ~ 65°C , 5~90% RH
Packing	��
Accessory	Charge cable
Size	30 20 5 cm

��	��	��
GEE-AR-200 134.2 kHz long distance RFID reader spec.pdf	2013-05-20	387 KB
GEE-AR-200 134.2 khz RFID reader SDK.rar	2013-05-20	166 KB
