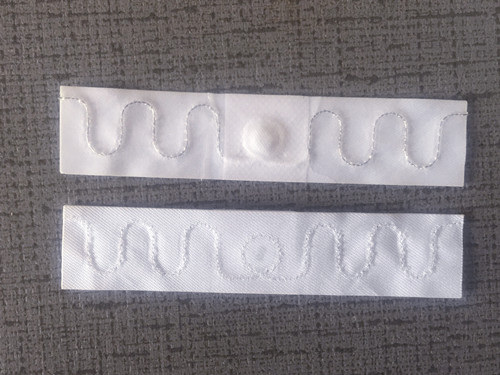

GEE-GT-7015T RFID textile tag

GEE-GT-7015T RFID textile tag

100% polyester with hot melt glue on surface, 70x 15 mm,  NXP UCODE 7M/ Impinj M730 chip, 128 bit EPC memory,  RFID yarn antenna, 200+ water wash,  3 meter read distance,  ISO18000-6C & EPC Gen2 protocol  compliance , sewable, washable,  dryable

Download Specification

OverviewSpecificationApplicationsSupport

GEE-GT-7015 is a  fabric type UHF tags that can be hot ironing on clothing for identification and washing purpose. Worked at frequency of 860~ 960 Mhz with RFID Yarn antenna, this type of tags can be washed for 200 times with read distance of 3 meter, fully compliance with rain rfid ISO18000-6C & EPC C1G2 protocol.

7015T- 70x 15 mm,  3 meter read distance, with holt melt glue on the surface, support direct ironing tag on clothing




Main features:

•  100% polyester, 70 x 15 mm, with hot melt glue, support ironing on textiles

•  Flexible RFID yarn antenna, sustain 200+ times water wash, or certain times stone wash, chemical wash

•  Contactless interface with read distance up to 3 meter

•   High performance NXP UCODE 7M/ Impinj M730 chip

•   128 bits EPC memory

•   Fast encoding speed , multiple tags identification technology

•   Sewable, washable,  dryable

•   High security features like TID, Password, AFS

•   ISO9001 Quality control system just for quality

Model:GEE-GT-7015T
Physical ¡¡
Material 100£¥ polyester with holt melt glue on the surface
Size 70x 15mm x 1.5 mm
Antenna RFID yarn antenna
Weight 0.5 gram
Protocol  ISO18000-6C & EPC C1G2
RF features ¡¡
Frequency 860~ 960 Mhz
Inlay embeded NXP UCODE7M/ Impinj M730
Memory  128 bit EPC memory, 96 bit TID
Read distance Dry:  up to 3 m  Wet: up to 1.5 m
Data retention 10 years
Environment  ¡¡
Ironing 30 second, at 220°C
Exposure 2.5 bar
Drying 30 minutes at 160°C
Washing 15 minutes at 90 °C
Sterilization 20 minutes at 134 °C
Dewatering pressure 60 bar pressure
Washing cycles up to 200 times or 3 years
Storage condition  -20 ~ 45 C, 5- 95% RH, no condensation

The fashion industry was one of the first retail sales sectors to adopt RFID technology

In recent years, mainly in the USA and Europe, dozens of fashion retailers like Marks & Spencer, Levi’s, Throttleman, American Apparel, Le Coq Sportif, Karstadt, Dillards and Galeria Kaufhof have implemented RFID product identification projects to improve their supply chain processes and retail outlet operations.

For such an industry, experiencing seasonal peaks and handling large volumes of goods, the use of RFID tags in the supply chain offers significant advantages:

-    A major improvement in inventory accuracy and speed, resulting in better supply management, greater on-shelf availability and therefore more sales.A clear illustration of the advantages of RFID is that it enables bulk, ‘on-the-fly’ reading, thereby cutting inventory times by 90% and, at the same time, substantially improving inventory accuracy, as RFID leaves little room for human error and information on the style, size and color of an article can all be stored on the tag.

-   Unprecedented fashion logistics productivity gains can be achieved thanks to improved reception, shipment and inventory processes in manufacturing factories, distribution centers and stores.The simultaneous, contactless and ‘on-the-fly’ reading of hanging articles and articles folded into boxes radically reduces the time spent counting and controlling articles during reception and shipment operations. Because it takes only a few seconds to identify all the articles on a pallet, a rack or in a parcel, our customers are spending 12 times less time checking their goods.

Thanks to RFID technology, today we have easier and abundant life than before. It not only change the way we purchasing, but also change the way of production.   It builds an efficient information highway between the manufacturers and end customers, at one end of highway, manufactures can get instant sales status and make right decision on business, while at the other end, customers can directly get the products details and enjoy the fast purchasing  that high technique brought.

Though there are still some concerns upon the newly emerged RFID technology, however as more successful stories come we believe the bright future of RFID technology will come soon.

Related Products

  • GEE-GT-100 RFID garment tag >

    200 g chrome paper, 100 x 50 mm,  H3/H9, Impinj M4/ MR6/M730, 128 bit EPC,  10 m read distance

  • GEE-GT-400 RFID care label >

    satin / nylon/ polyester material, 70x 40 mm, Impinj Monza R6/ R6P / UCODE 7 chip, 128 bit EPC memory, 3-5  meter read distance, sewing enabled

DescriptionDateDownload
GEE-GT-7015T Textile RFID tag specification.pdf2021-11-08
3 MB
