GEE-GT-400 RFID care label

GEE-GT-400 RFID care label

satin / nylon/ polyester material, 70x 40 mm, Impinj Monza R6/ R6P / UCODE 7 chip, 128 bit EPC memory,  3- 5 m read distance, sewing enabled, color fastness 4-5 degree,  ISO18000-6C & EPC Gen2 protocol  compliance , up to 1200 tags/ second identify speed, sewable, washable,  dryable

Download Specification

OverviewSpecificationApplicationsSupport

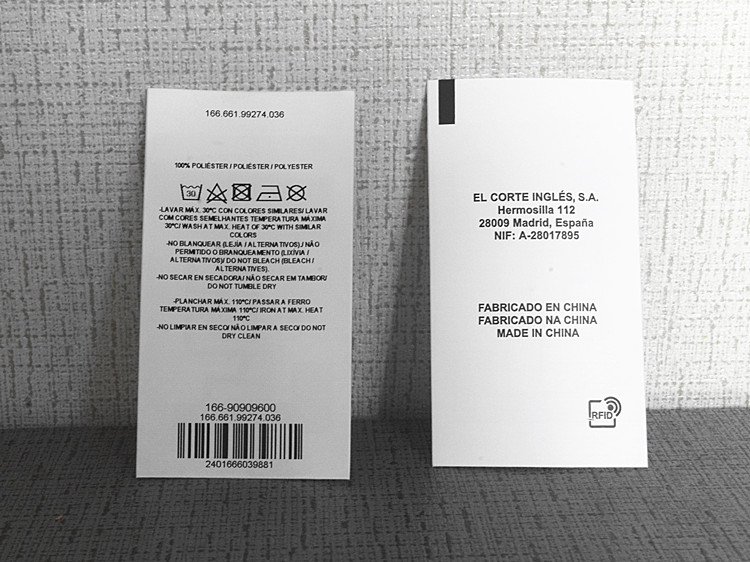

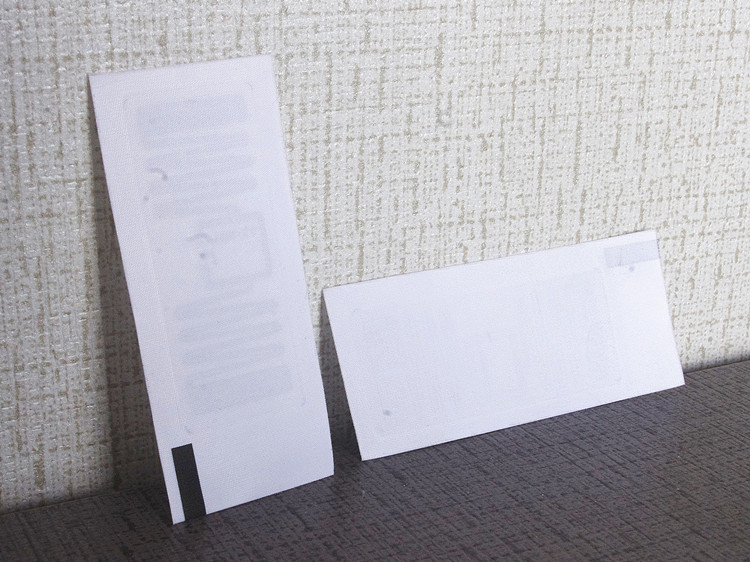

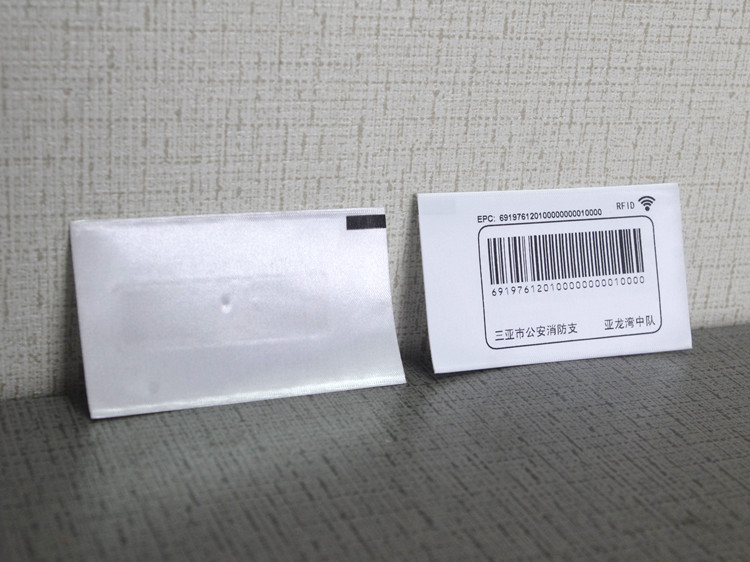

GEE-GT-400 is a fabric UHF tags that normally is sewed on clothing for identification and washing purpose. Worked at frequency of 860~ 960 Mhz with RFID chip embedded, this type of tags can be sewed on clothing and  identified at 3- 10 meter distance.  Mainly used for apparel inventory, tracking and anti-fake.

GT-400S-satin material ( durable, suitable for most of suit identification)




GT-400N-Nylon material  ( pliable and tough, for general purpose suit, be cut after sales)


GT-400P-polyester material ( very soft, suitable for underwear )


Main features:

•  70 x 40 mm , 46 x 30 mm or customized sizes

•  Satin, nylon, polyester material with read distance up to 10 meter

•   High performance NXP UCODE 7 or Impinj Monza R6 / R6P chip

•   128 bits programmable EPC memory

•   Fast encoding speed , multiple tags identification technology, support up to 1200 tags/ second read speed

•   High security features like TID, Password, EAS

•   Automatic RFID Tag manufacturing craft with flexographic printing technology

•   ISO9001 Quality control system just for quality

•   Green material with ROHS and SGS certification


Model:GEE-GT-400

Physical
Material satin, nylon, polyester
Size 46 x 30 mm/ 70 x 40 mm and  customize size
Antenna Etched aluminum
Weight 1 gram
Personalization Logo, barcode, serial number printing, color fastness :4~ 5 degree
Protocol  ISO18000-6C & EPCglobal Class I Gen 2
RF features
Frequency 860~ 960 Mhz
Chip Impinj Monza R6/ R6P, NXP UCODE 7 / UOCDE 8
Memory  128 bit programmable EPC memory
Read distance 3 meter - 5 meter depended on embedded inlay's model
Rewrite duration 10,000 cycle
Data retention 10 years
Other features
Security TID, Password, EAS
Anti-collision Multiple tags operation allowed
Environment
Operating condition  -40 ~ 60 Degree Celsius
Storage condition  -20 ~ 45 Degree Celsius
Shelf life  2 years

The fashion industry was one of the first retail sales sectors to adopt RFID technology

In recent years, mainly in the USA and Europe, dozens of fashion retailers like Marks & Spencer, Levi’s, Throttleman, American Apparel, Le Coq Sportif, Karstadt, Dillards and Galeria Kaufhof have implemented RFID product identification projects to improve their supply chain processes and retail outlet operations.

For such an industry, experiencing seasonal peaks and handling large volumes of goods, the use of RFID tags in the supply chain offers significant advantages:

-    A major improvement in inventory accuracy and speed, resulting in better supply management, greater on-shelf availability and therefore more sales.A clear illustration of the advantages of RFID is that it enables bulk, ‘on-the-fly’ reading, thereby cutting inventory times by 90% and, at the same time, substantially improving inventory accuracy, as RFID leaves little room for human error and information on the style, size and color of an article can all be stored on the tag.

-   Unprecedented fashion logistics productivity gains can be achieved thanks to improved reception, shipment and inventory processes in manufacturing factories, distribution centers and stores.The simultaneous, contactless and ‘on-the-fly’ reading of hanging articles and articles folded into boxes radically reduces the time spent counting and controlling articles during reception and shipment operations. Because it takes only a few seconds to identify all the articles on a pallet, a rack or in a parcel, our customers are spending 12 times less time checking their goods.

Thanks to RFID technology, today we have easier and abundant life than before. It not only change the way we purchasing, but also change the way of production.   It builds an efficient information highway between the manufacturers and end customers, at one end of highway, manufactures can get instant sales status and make right decision on business, while at the other end, customers can directly get the products details and enjoy the fast purchasing  that high technique brought.

Though there are still some concerns upon the newly emerged RFID technology, however as more successful stories come we believe the bright future of RFID technology will come soon.

Related Products

DescriptionDateDownload
GEE-GT-400 textile rfid label specification.pdf2013-05-20
1.1 MB
