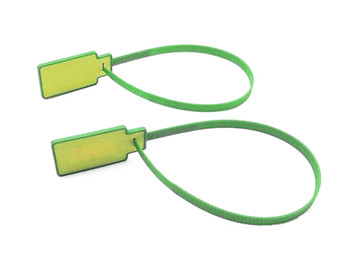

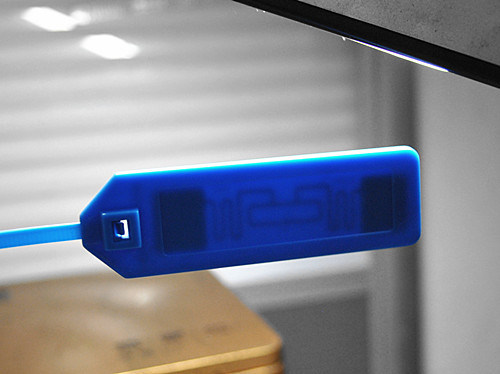

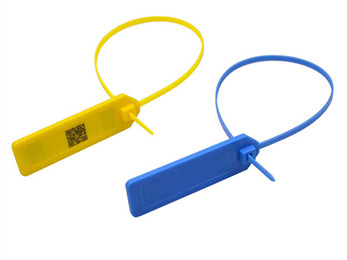

GEE-UT-8330 Cable tie RFID tag

GEE-UT-8330 Cable tie RFID tag

448  x 28 x 3mm, PP material, 860~960 Mhz,  H3  chip, 10 meter read distance, one-off type, ISO18000-6C & EPCglobal ClassI Gen 2 protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-UT-8330 is a RFID cable tie uhf rfid tag, which is for permanently fastened to an object for tracking purpose. Special cable structure makes it easy for installation. With secondary encapsulation technology, it is dust-free, waterproof and can sustain multiple chemical solvens.


Main features:

●  448 x 28 x 3 mm, PP material

●  One direction design ensure tight connection

●   10 m  Long Read distance with ALN-9662 inlay

●   Allow laser engrave/ siliscreen logo, number

●   Multiple tags operation allowed

●   Unique second encapsulation technology, dust-free,  waterproof of IP68

 ●   Green products, ROHS, SGS compliance



Model:GEE-UT-8330
Physical
Material PP
Size Flag:90mm (L) x 28 mm (W), Tail: 358 mm (L) x 3 mm (W)
Total Size: 448 x 28 x 3 mm,
Antenna Etched aluminum
Color Blue, Green, White
Personalization Silkscreen/  laser engraving  logo, number
Weight 5 gram
Protocol  ISO18000-6C & EPCglobal Class I Gen 2
RF features
Frequency 860~ 960 Mhz
Inlay Alien Higgs 3, inlay: 9662
Memory  512 bit user memory, 96 bit EPC, 64 bit TID
Read distance 10 meter
Data retention 50 years
Other features
Security TID, unqiue serial number, password
Anti-collision Multiple tags operation allowed
Environment
Operating condition  -40 ~ 60 Degree Celsius
Storage condition  -20 ~ 45 Degree Celsius
Environment durability  Chemical solvent, deep water, certain pull, shear force
Waterproof  IP68
Shelf life  2 years

RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.

WIRELESS SCANNING


One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.


UNIQUE TRACKING


RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.


REAL-TIME UPDATES


Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.


INTEGRATION WITH OTHER SYSTEMS


The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
